Report Menu
The Report Menu has the following options: -
View All
Standard Reports
Run Reports
Create
Adhoc Report
Remove All
Adhoc Reports
Report
Options
View All Standard Reports
This menu choice will run or remove all
Standard Reports
Run Standard Reports
This sub menu lists categories of
Standard Reports
which are available, the categories are
Standard Reports
The Standard Reports that can be run against the Saved Database Batch File
to aid in the analysis. Once a report is run it will add an item to
the database View that will allow you view the structures that have been found
by the reports criteria which are set in the Report Options.
As well as the standard reports you may run adhoc
reports.
The table below details the different types of reports that may be run
Icon |
Report type |
Description |
Applicable to |
Indicates |
|
Adhoc Report |
Report Specific |
Report specific |
|
|
Populations |
Datasets with Record
Populations above the Population % Limit of the Maximum Record Population
|
Datasets |
Potential Population Limit
error on running database. Included in Enterprise view |
|
Populations |
Structures which have no
data in them
|
All Structures |
Potential Redundant Data
Structures |
|
Populations |
Structures with number of
Areas above 800
|
All Structures |
Potential Population Limit
error on running database. Included in Enterprise view |
|
Populations |
Structures with number of
Areas above the Population % Limit of Maximum Areas
|
All Structures |
Potential Population Limit
error on running database. Included in Enterprise view |
|
DK Tables |
Datasets with number of DK
entries above the DK Table Entries Limit
|
Datasets |
Dataset that would
potentially benefit from garbage collection |
|
DK Tables |
Datasets with number of DK
entries above 50% of the Actual Population |
Datasets |
Dataset that would
potentially benefit from garbage collection |
|
Set Level Depth |
Sets with levels of tables
above the Set Levels Limit
|
Sets |
Sets that require excessive
IO activity. Included in Enterprise view |
|
Set Level Depth |
Sets with levels of tables
equal to the Maximum Levels
|
Sets |
Sets that require excessive
IO activity and liable to halting the database if DMS attempts to exceed the
maximum levels. Included in Enterprise view |
|
Root Table Entries |
Sets with the number of Root
Table entries above the Population % Limit of Root Table Entries
|
Sets |
Potential Sets that are. Included in Enterprise view |
|
File Information |
Structures with Total File
Size above the File Size Limit
|
All Structures |
Large Structures |
|
File Information |
Individual Files with File
Size above the File Size Limit
|
All Structures |
Large Structures |
|
File Information |
Files which have not been
updated for over a year.
|
All Structures |
Potential Redundant Data
Structures |
|
Wasted Space |
Datasets with blocks with
wasted words per block over the Wasted Space Word limit.
|
Datasets |
Datasets which may benefit
from having the structures physical attributes changed to reduce the amount
of wasted space.
|
|
Wasted Space |
Structures where the total amount of wastage in
the file is over the Wasted Space % limit
|
All Structures |
Structures which may benefit
from having the structures physical attributes changed to reduce the amount
of wasted space.
|
|
Wasted Space |
Datasets where the total
amount of wastage in the File is over the Wasted Space File limit*
|
Datasets |
Datasets which may benefit
from having the structures physical attributes changed to reduce the amount
of wasted space.
|
|
Wasted Space |
Sets where the total amount
of wastage in the File is over the Wasted Space File limit*
|
Sets |
Sets which may benefit from
having the structures physical attributes changed to reduce the amount of
wasted space.
|
|
Wasted Space |
Structures where the total actual loadfactor in
the file is less than the Wasted Space % limit
|
All Structures |
Structures which may benefit
from having the structures physical attributes changed to reduce the amount
of wasted space.
|
|
Dynamic Attributes |
Dataset Maximum Memory
Utilisation
|
Datasets |
|
|
Dynamic Attributes |
Set Memory Maximum Memory
Utilisation
|
Sets |
|
|
Dynamic Attributes |
Datasets with a
Reblockfactor = 1
|
Datasets |
Potentially performance
degrading Reblockfactor |
|
DASDL Attributes |
Datasets with the number of
wasted words per block greater than the record size.
|
Datasets |
Structures which may benefit
from having the structures physical attributes changed to reduce the amount
of wasted space.
|
|
DASDL Attributes |
Sets with the number of
wasted words per table greater than the key size.
|
Sets |
Structures which may benefit
from having the structures physical attributes changed to reduce the amount
of wasted space.
|
|
DASDL Attributes |
Datasets with Area Size = 1
Block
|
Datasets |
Just odd |
|
DASDL Attributes |
Datasets with Block Size = 1
Record |
Datasets |
Just odd |
|
Description File and Control File Comparison |
Structures with differences between the Description File and Control File
values for the following attributes:-
- Maximum Areas
- Family
- Buffer Specifications
- Reblock
- Reblockfactor
- Population Warning attributes
- Population Increase attributes
|
All Structures |
Potential changes to
Database when next compiled. |

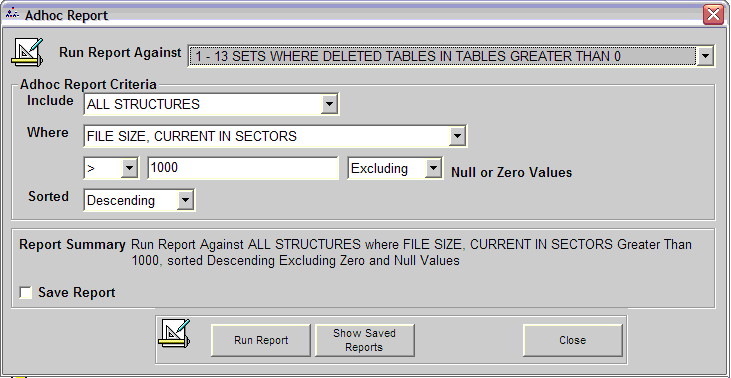

Creating Adhoc Reports
The Adhoc Report form allows you create your own
Adhoc reports against your database, it is initiated by clicking on the Adhoc
report button on the toolbar. You have all the Database and
Structure Attributes available with the option to compare to your defined
values. Once the report is defined it will be processed and included in the
end Adhoc Reports node.
Run Report Against - This selects
which structures you want to run the report against. The default is to run
against all structures that fit your report criteria. Alternatively you
may select a previous run report as the basis for your new report, this will
mean that only structures reported in the previous run will be considered in the
new run. Through this method of combining report criteria you are able to
complete complex selection criteria.
Include - Allows you choose to
report against all structures, Datasets only or Sets only. This field is
automatically changed when the Data item selected can only be executed against
Datasets or Sets.
Where - Allows you to define the criteria for the structures that you
wish to report against. These include:-
Data Item Name - One of the attributes that Virtual Analyser captures
Relation - context sensitive to the type of data to be reported
Value - Value to used as the selection criteria
Include Null and Zero Values - Whether or not you wish to include null or zero
values in your output
Sorted - Allows you to define if the
Output should be Ascending or Descending
Saving Adhoc Reports
Once you have created your report you may save it so
that it may be run again in the future. By selecting the Save Report
check box you are able to add a comment to the report. You are then also
given options to Save the Report or Save and Run the report.
Rerunning Adhoc Reports
To rerun an existing report you initiate the Adhoc Report Dialogue and click
the Show Saved Report Button. This will then list all the saved reports in
the descending order that they were defined. To run a specific report
select the report and Click the Load Report button. This takes you to the
report creation view where you may execute it.
Removing Adhoc Reports
You are able to remove Adhoc reports
from the Database View by one of two methods.
The first is to select the 'Remove All
Adhoc Reports' menu choice which removes all the
Adhoc Reports from the Database View.
Alternatively you may select individual
reports in the Database View and click the delete button on the
toolbar.
Report Options
This form allows you to select the
values that will be used by the
Standard Reports as parameters when they are initiated.
The values which can be changed are:-
Icon |
Label |
Description |
|
Population % Limit |
|
|
DK Entries Limit |
|
|
Set Levels Limit |
|
|
Root Table % Limit |
|
|
File Size Sector Limit |
|
|
Wasted Space Word Limit |
|
|
Wasted Space % Limit |
|
|
* Wasted File Space limit |
Derived from File Size Sector Limit * Wasted Space % Limit |
The Set Defaults button will revert the
attribute values to the
Defaults
Reports Defaults
The Default Report Options are:-
Population % Limit
|
80 % |
DK Entries Limit
|
100 Entries |
Set Levels Limit
|
3 Levels |
Root Table % Limit
|
80 % |
File Size Sector Limit
|
100,000 Sectors |
Wasted Space Word Limit
|
10 Words |
Wasted Space % Limit
|
5 % |
|
